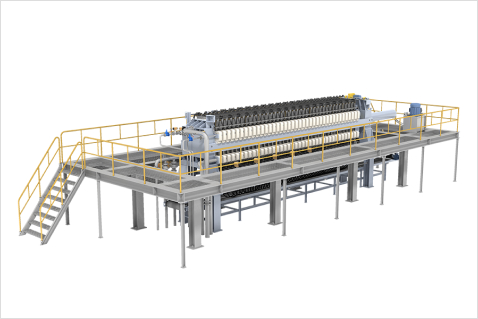

OFP(OverHead Filter Press) is to filter and dewater sludge from waste water created from various plants and houses. Suitable for waste-water processing plants, it can eliminate up to 50% of sludge by high pressure dewatering and drying. OFP(OverHead Filter Press) has a suitable structure for high pressure dewatering and its life is extended with optimal materials selected through structure analysis. OFP(OverHead Filter Press) the only high pressure sludge dewatering machine in Korea of which slu
· Continuous cake peeling device reduces cycle time.
· Improved durability with a sturdy frame.
· It has a beautiful appearance with a simple design.
· A fan is installed on the top of the filter plate to prevent contamination of cakes, etc.
· We provide specifications suitable for the characteristics of various industrial sites.
· Sewage treatment, Chemical industries
· Food processing, Pharmaceutical manufacturing
· Tire manufacturing
· Paint industries
| Model | OFP 1200 | OFP 1500 | OFP 2000 | OFP 2500 | |
|---|---|---|---|---|---|
| Filter plate size | mm | 1200 | 1500 | 2000 | 2500 |
| Filter area | m² | 315 | 505 | 898 | 1452 |
| Max. Filter plate | Ea | 132 | |||
| Max. Cake thickness | mm | 55 (Before squeezing) | |||
| Max. Chamber Volume | m² | 8.7 | 13.9 | 24.7 | 39.9 |
| Filtration Pressure range | b | 10 - 20 - 30 | |||
| Max. Frame Length | mm | 15,500 | |||
| Max. Frame width | mm | 2100 | 2450 | 2900 | 3400 |
| Max. Frame height | mm | 2000 | 2300 | 2700 | 3300 |
| Installed Hyd. Power | Kw | 6.7 | 8.8 | 13.3 | 19.4 |
| Max. Cloth Moving unit | Kw | 0.8 | 1.1 | 1.5 | 2.2 |
